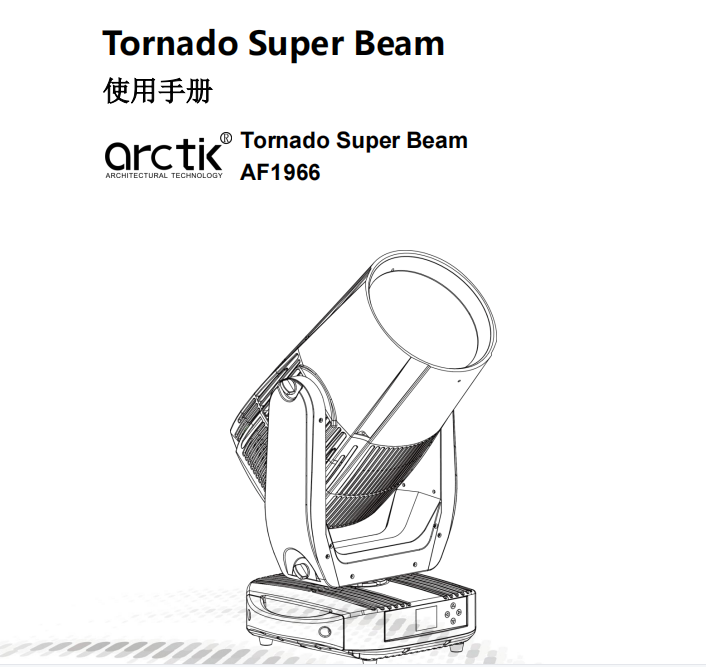

一物一碼&AF1966SCT說明書
2022-11-29 17:39:29

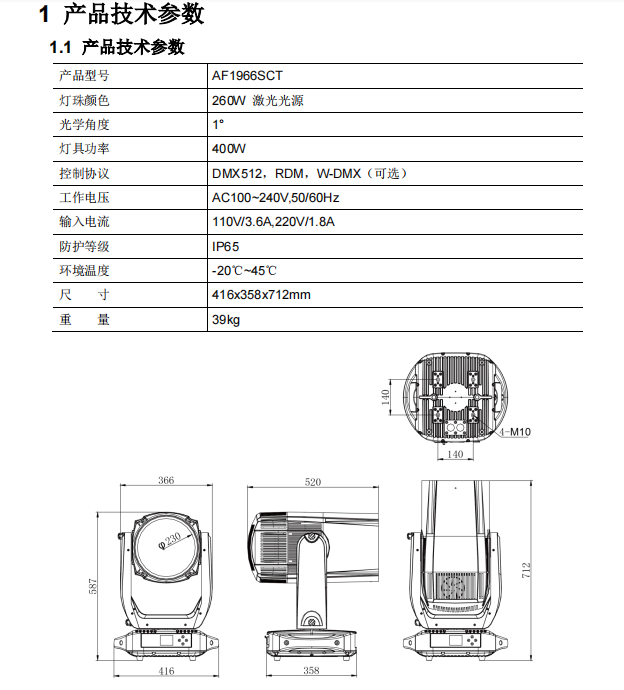

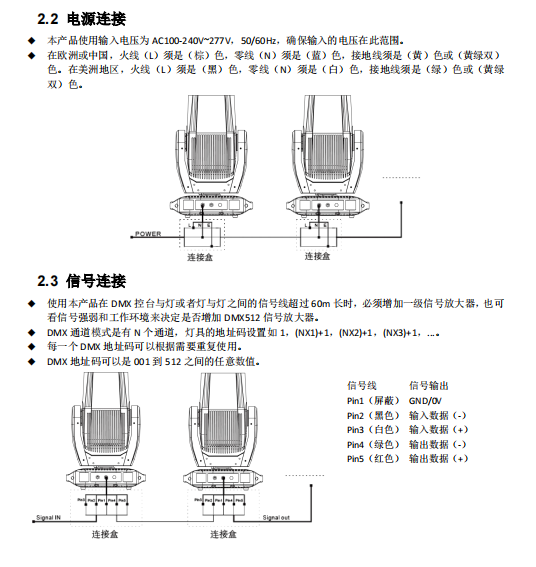

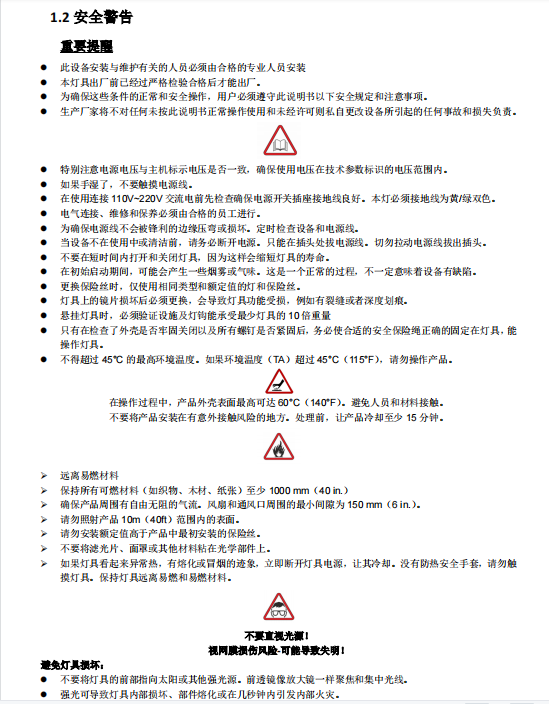

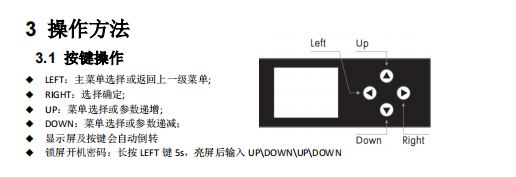

3.2顯示菜單
|
ADDRESS |
001 - 512（默認 001） |
DMX 地址碼設置 （根據通道模式至高限制） |
||
|
PERSON |
BASIC |
DMX 通道模式選擇 |
||
|
STANDARD（默認） |
||||
|
EXTEND |
||||
|
RUNMODE |
DMX512（默認） |
DMX512 信號 |
||
|
AUTO |
自走程序效果 |
|||
|
CUSTOM1 |
自編程 EDIT 1 效果 |
|||
|
CUSTOM2 |
自編程 EDIT 2 效果 |
|||
|
OPTION |
PAN INVERT |
NORMAL（默認） |
水平方向旋轉選擇 |
|
|
INVERT |
||||
|
TILT INVERT |
NORMAL（默認） |
垂直方向旋轉選擇 |
||
|
INVERT |
||||
|
PERFORM |
STUDIO |
靜音模式，風機轉速慢 |
||
|
POWER |
全功率模式，風機轉速快 |
|||
|
LIVE（默認） |
自動模式，風機隨溫度變化 |
|||
|
BLACKOUT |
OFF（默認） |
黑場不延遲 |
||
|
ON |
黑場延遲 3s |
|||
|
DIMMER |
DIM4（默認） |
調光曲線旋轉，OFF 快，DIM4 慢 |
||
|
OFF |
||||
|
DMX ERROR |
SAVE（默認） |
失去 DMX 信號后保持 |
||
|
BLACK |
失去 DMX 信號后黑場 |
|||
|
DISPLAY TIME |
On |
顯示屏常亮 |
||
|
30s |
不操作按鍵侯 30s 滅屏 |
|||
|
1min（默認） |
不操作按鍵侯 1min 滅屏 |
|||
|
2min |
不操作按鍵侯 2min 滅屏 |
|||
|
DISPLAY LOCK |
OFF |
按鍵鎖關 |
||
|
ON（默認） |
按鍵鎖開 |
|||
|
LOAD PARA |
OFF |
參數不上傳 |
||
|
ON（默認） |
參數上傳 |
|||
|
SETTING |
RECOVERY |
**** |
恢復出廠設置 |
|
|
CLEAN EDIT1 |
**** |
清除編輯場景 EDIT 1 |
||
|
CLEAN EDIT2 |
**** |
清除編輯場景 EDIT 2 |
||
|
|
|
WDMX HIDE |
NO |
菜單 WDMX RESET 和 SIGNAL 顯示 |
|
|
YES |
菜單 WDMX RESET 和 SIGNAL 隱藏 |
||||
|
PT ENCODER |
OFF |
水平垂直編碼器 OFF 關閉; ON 打開 |
|||
|
ON |
|||||
|
FOCUS LIMIT |
OFF |
調焦行程限制關閉 |
|||
|
ON |
調焦行程限制開啟 |
||||
|
WDMX RESET |
YES |
無線復位 |
|||
|
NO |
不復位 |
||||
|
SIGNAL |
ONLY XLRDMX |
僅有線 |
|||
|
XLRDMX FIRST |
有線優先 |
||||
|
ONLY WDMX |
僅無線 |
||||
|
WDMX FIRST |
無線優先 |
||||
|
WDMX TO XLRDMX |
無線轉有線 |
||||
|
EDIT |
EDIT 1-2 |
STEP 1-30 |
PAN |
0-255 |
自編程效果 EDIT 1/ EDIT 2 STEP 1-30 為自編程效果 EDIT 1/2 程序編輯 |
|
TILT |
0-255 |
||||
|
PT SPEED |
0-255 |
||||
|
CTO |
0-255 |
||||
|
COLOR |
0-255 |
||||
|
FIXED GOBO |
0-255 |
||||
|
PRISM 1 |
0-255 |
||||
|
PRISM 2 |
0-255 |
||||
|
FOCUS |
0-255 |
||||
|
DIMMER |
0-255 |
||||
|
STROBE |
0-255 |
||||
|
TIME |
0-255 |
時間為通道值 X0.1s |
|||
|
USE |
YES |
場景運行 |
|||
|
NO |
場景不運行 |
||||
|
MANUAL |
AUTO TEST |
自動測試 |
|||
|
CHANNEL |
PAN |
0-255 |
手動控制通道 |
||
|
TILT |
0-255 |
||||
|
PT SPEED |
0-255 |
||||
|
CTO |
0-255 |
||||
|
COLOR |
0-255 |
||||
|
FIXED GOBO |
0-255 |
||||
|
PRISM 1 |
0-255 |
||||
|
PRISM 2 |
0-255 |
||||
|
FOCUS |
0-255 |
||||
|
DIMMER |
0-255 |
||||
|
STROBE |
0-25 |
||||
|
DEBUG HIDE |
YES |
工廠調試模式，復位后起作用。 YES 進入，NO 不進入 |
|||
|
NO |
|||||
|
RESET |
ALL RESET |
全部復位 |
|||
|
PT RESET |
水平和垂直復位 |
||||
|
COLOR SYSTEM |
色盤、CTO、圖案復位 |
||||
|
OTHER |
調變焦、棱鏡復位 |
||||
|
INFO |
FIXTURE HOURS |
燈具使用時間 |
|||
|
|
LED USE HOURS |
LED 光源使用時間 |
|||
|
TEMPERATURE |
光源溫度 |
||||
|
VERSION |
軟件版本信息 |
||||
|
RDM |
UID |
0x388Axxxxxxxx |
燈具 RDM ID |
||
|
LABEL |
Tornado Super Beam |
燈具名稱 |
|||
|
SYSTEM ERROR |
MEMORY IC |
記憶 IC |
|||
|
ANGLESENSOR |
角度傳感器 |
||||
|
PAN SENSOR |
X 磁鐵 |
||||
|
PAN ENCODER |
X 編碼器 |
||||
|
PAN DRIVEIC |
X 驅動 IC |
||||
|
TILT SENSOR |
Y 磁鐵 |
||||
|
TILT ENCODER |
Y 編碼器 |
||||
|
TILT DRIVEIC |
Y 驅動 IC |
||||
|
TEMPERATURE |
溫控 IC |
||||
|
CTO RESET |
色溫片復位 |
||||
|
COLOR RESET |
COLOR 復位 |
||||
|
FIXED GOBO RESET |
圖案盤旋轉復位 |
||||
|
PRISM 1 RESET |
棱鏡復位 |
||||
|
PRISM 2 RESET |
棱鏡復位 |
||||
|
FOCUS RESET |
調焦復位 |
||||
|
SERVICE |
**** |
PAN |
±127 |
水平位置微調 |
|
|
TILT |
±127 |
垂直位置微調 |
|||
|
CTO |
±127 |
色溫片位置微調 |
|||
|
COLOR |
±127 |
色盤位置微調 |
|||
|
FIXED GOBO |
±127 |
圖案盤位置微調 |
|||
|
PRISM 1 |
±127 |
棱鏡位置微調 |
|||
|
PRISM 2 |
±127 |
棱鏡位置微調 |
|||
|
FOCUS |
±127 |
調焦位置微調 |
|||
4. 使用 DMX512 控臺
4.1 DMX 通道表
|
BASIC (12CH) |
STANDARD (16CH) |
Extend (18CH) |
數值 |
功 能 |
|
1 |
1 |
1 |
000-255 |
PAN 0-540° |
|
- |
2 |
2 |
000-255 |
PAN FINE |
|
2 |
3 |
3 |
000-255 |
TILT 0-270° |
|
- |
4 |
4 |
000-255 |
TILT FINE |
|
3 |
5 |
5 |
000-255 |
PT Speed |
|
4 |
6 |
6 |
CTO |
|
|
0-10 |
WHITE |
|||
|
11-127 |
CTO |
|||
|
128-244 |
CTB |
|||
|
245-255 |
WHITE |
|||
|
5 |
7 |
7 |
COLOR WHEEL 19+1 |
|
|
0-7 |
WHITE |
|||
|
8-10 |
COLOR 1 |
|||
|
11-13 |
COLOR 2 |
|||
|
14-16 |
COLOR 3 |
|||
|
17-19 |
COLOR 4 |
|||
|
20-22 |
COLOR 5 |
|||
|
23-25 |
COLOR 6 |
|||
|
26-28 |
COLOR 7 |
|||
|
29-31 |
COLOR 8 |
|||
|
32-34 |
COLOR 9 |
|||
|
35-37 |
COLOR 10 |
|||
|
38-40 |
COLOR 11 |
|||
|
41-43 |
COLOR 12 |
|||
|
44-46 |
COLOR 13 |
|||
|
47-49 |
COLOR 14 |
|||
|
50-52 |
COLOR 15 |
|||
|
53-55 |
COLOR 16 |
|||
|
56-58 |
COLOR 17 |
|||
|
59-61 |
COLOR 18 |
|||
|
62-64 |
COLOR 19 |
|||
|
65-191 |
COLOR WHELL1 0-360° |
|||
|
192-222 |
COLOR WHELL1 RAINBOW EFFECT(SPEED 100%->1) |
|||
|
223-224 |
STOP |
|||
|
225-255 |
COLOR WHELL1 RAINBOW EFFECT(SPEED 1->100%) |
|||
|
- |
- |
8 |
000-255 |
COLOR WHEEL FINE |
|
6 |
8 |
9 |
FIXED GOBO WHEEL 29+1 |
|
|
0-10 |
WHITE |
|||
|
11-12 |
FIXED GOBO WHEEL 1 |
|||
|
13-14 |
FIXED GOBO WHEEL 2 |
|||
|
15-16 |
FIXED GOBO WHEEL 3 |
|||
|
17-18 |
FIXED GOBO WHEEL 4 |
|||
|
19-20 |
FIXED GOBO WHEEL 5 |
|||
|
21-22 |
FIXED GOBO WHEEL 6 |
|||
|
23-24 |
FIXED GOBO WHEEL 7 |
|||
|
25-26 |
FIXED GOBO WHEEL 8 |
|||
|
27-28 |
FIXED GOBO WHEEL 9 |
|||
|
29-30 |
FIXED GOBO WHEEL 10 |
|||
|
31-32 |
FIXED GOBO WHEEL 11 |
|||
|
33-34 |
FIXED GOBO WHEEL 12 |
|||
|
35-36 |
FIXED GOBO WHEEL 13 |
|||
|
37-38 |
FIXED GOBO WHEEL 14 |
|||
|
39-40 |
FIXED GOBO WHEEL 15 |
|||
|
41-42 |
FIXED GOBO WHEEL 16 |
|||
|
43-44 |
FIXED GOBO WHEEL 17 |
|||
|
45-46 |
FIXED GOBO WHEEL 18 |
|||
|
47-48 |
FIXED GOBO WHEEL 19 |
|||
|
49-50 |
FIXED GOBO WHEEL 20 |
|||
|
51-52 |
FIXED GOBO WHEEL 21 |
|||
|
53-54 |
FIXED GOBO WHEEL 22 |
|||
|
55-56 |
FIXED GOBO WHEEL 23 |
|||
|
57-58 |
FIXED GOBO WHEEL 24 |
|||
|
59-60 |
FIXED GOBO WHEEL 25 |
|||
|
61-62 |
FIXED GOBO WHEEL 26 |
|||
|
63-64 |
FIXED GOBO WHEEL 27 |
|||
|
65-66 |
FIXED GOBO WHEEL 28 |
|||
|
67-68 |
FIXED GOBO WHEEL 29 |
|||
|
69-72 |
FIXED GOBO WHEEL 1 SHAKE (SPEED 1 —> 100%) |
|||
|
73-76 |
FIXED GOBO WHEEL 2 SHAKE (SPEED 1 —> 100%) |
|||
|
77-80 |
FIXED GOBO WHEEL 3 SHAKE (SPEED 1 —> 100%) |
|||
|
81-84 |
FIXED GOBO WHEEL 4 SHAKE (SPEED 1 —> 100%) |
|||
|
85-88 |
FIXED GOBO WHEEL 5 SHAKE (SPEED 1 —> 100%) |
|||
|
89-92 |
FIXED GOBO WHEEL 6 SHAKE (SPEED 1 —> 100%) |
|||
|
93-96 |
FIXED GOBO WHEEL 7 SHAKE (SPEED 1 —> 100%) |
|||
|
97-100 |
FIXED GOBO WHEEL 8 SHAKE (SPEED 1 —> 100%) |
|||
|
|
|
|
101-104 |
FIXED GOBO WHEEL 9 SHAKE (SPEED 1 —> 100%) |
|
105-108 |
FIXED GOBO WHEEL 10 SHAKE (SPEED 1 —> 100%) |
|||
|
109-112 |
FIXED GOBO WHEEL 11 SHAKE (SPEED 1 —> 100%) |
|||
|
113-116 |
FIXED GOBO WHEEL 12 SHAKE (SPEED 1 —> 100%) |
|||
|
117-120 |
FIXED GOBO WHEEL 13 SHAKE (SPEED 1 —> 100%) |
|||
|
121-124 |
FIXED GOBO WHEEL 14 SHAKE (SPEED 1 —> 100%) |
|||
|
125-128 |
FIXED GOBO WHEEL 15 SHAKE (SPEED 1 —> 100%) |
|||
|
129-132 |
FIXED GOBO WHEEL 16 SHAKE (SPEED 1 —> 100%) |
|||
|
133-136 |
FIXED GOBO WHEEL 17 SHAKE (SPEED 1 —> 100%) |
|||
|
137-140 |
FIXED GOBO WHEEL 18 SHAKE (SPEED 1 —> 100%) |
|||
|
141-144 |
FIXED GOBO WHEEL 19 SHAKE (SPEED 1 —> 100%) |
|||
|
145-148 |
FIXED GOBO WHEEL 20 SHAKE (SPEED 1 —> 100%) |
|||
|
149-152 |
FIXED GOBO WHEEL 21 SHAKE (SPEED 1 —> 100%) |
|||
|
153-156 |
FIXED GOBO WHEEL 22 SHAKE (SPEED 1 —> 100%) |
|||
|
157-160 |
FIXED GOBO WHEEL 23 SHAKE (SPEED 1 —> 100%) |
|||
|
161-164 |
FIXED GOBO WHEEL 24 SHAKE (SPEED 1 —> 100%) |
|||
|
165-168 |
FIXED GOBO WHEEL 25 SHAKE (SPEED 1 —> 100%) |
|||
|
169-172 |
FIXED GOBO WHEEL 26 SHAKE (SPEED 1 —> 100%) |
|||
|
173-176 |
FIXED GOBO WHEEL 27 SHAKE (SPEED 1 —> 100%) |
|||
|
177-180 |
FIXED GOBO WHEEL 28 SHAKE (SPEED 1 —> 100%) |
|||
|
181-184 |
FIXED GOBO WHEEL 29 SHAKE (SPEED 1 —> 100%) |
|||
|
185-188 |
STOP WATER EFFECT |
|||
|
189-219 |
STATIC GOBO JUMPING WATER EFFECT (SPEED 100 —> 1%) |
|||
|
220-224 |
STOP WATER EFFECT |
|||
|
225-255 |
STATIC GOBO FLOWING WATER EFFECT (SPEED 1 —> 100%) |
|||
|
- |
- |
10 |
000-255 |
FIXED GOBO WHEEL FINE |
|
7 |
9 |
11 |
PRISM 1 |
|
|
0-10 |
WHITE |
|||
|
11-145 |
PRISM INSERT AND ADJUST THE ANGLE (0 —> 360°) |
|||
|
146-150 |
STOP |
|||
|
151-200 |
PRISM INSERT AND POSITIVE ROTATION (SPEED 100% —> 1) |
|||
|
201-205 |
STOP ROTATION |
|||
|
206-255 |
PRISM INSERT AND REVERSE ROTATION (SPEED 1 —> 100%) |
|||
|
8 |
10 |
12 |
PRISM 2 |
|
|
0-10 |
WHITE |
|||
|
11-145 |
PRISM INSERT AND ADJUST THE ANGLE (0 —> 360°) |
|||
|
146-150 |
STOP |
|||
|
151-200 |
PRISM INSERT AND POSITIVE ROTATION (SPEED 100% —> 1) |
|||
|
201-205 |
STOP ROTATION |
|||
|
206-255 |
PRISM INSERT AND REVERSE ROTATION (SPEED 1 —> 100%) |
|||
|
9 |
11 |
13 |
000-255 |
FOCUS |
|
- |
12 |
14 |
000-255 |
FOCUS FINE |
|
10 |
13 |
15 |
000-255 |
DIMMER |
|
- |
14 |
16 |
000-255 |
DIMMER FINE |
|
11 |
15 |
17 |
STROBE |
|
|
0-9 |
NO FUNCTION |
|||
|
10-99 |
STROBE（ FROM SLOW TO FAST） |
|||
|
100-109 |
NO FUNCTION |
|||
|
110-179 |
LIGHTNING STROBE |
|||
|
180-189 |
NO FUNCTION |
|||
|
190-255 |
RANDOM STROBE |
|||
|
12 |
16 |
18 |
CONTROL（EXECUTE AFTER 3 SECONDS） |
|
|
0-10 |
NO FUNCTION |
|||
|
11-20 |
PAN/TILT BLACK ACTIVATED |
|||
|
21-30 |
PAN/TILT BLACK DEACTIVATED |
|||
|
31-40 |
PAN INVERT |
|||
|
41-50 |
TILT INVERT |
|||
|
51-60 |
PAN/TILT INVERT OFF |
|||
|
61-70 |
STUDIO |
|||
|
71-80 |
POWER |
|||
|
81-90 |
LIVE |
|||
|
91-100 |
RESERVED |
|||
|
101-110 |
DIM4 |
|||
|
111-120 |
OFF |
|||
|
121-200 |
RESERVED |
|||
|
201-210 |
ALL RESET |
|||
|
211-220 |
XY RESET |
|||
|
221-230 |
COLOR\GOBO SYSTEM RESET |
|||
|
231-240 |
FOCUS RESET |
|||
|
241-255 |
RESERVED |
|||
